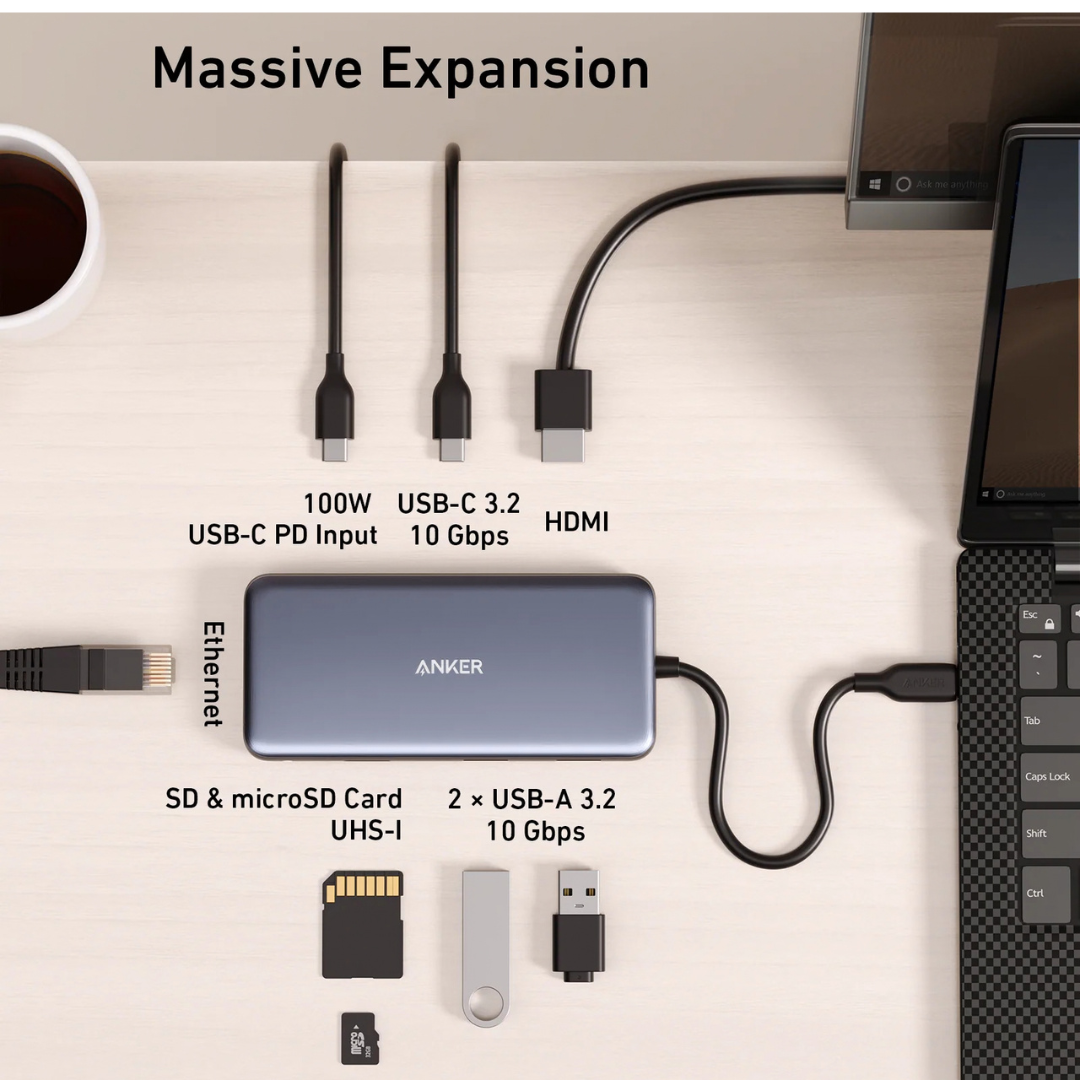

Ports Breakdown & Technical Functions
2. USB-C Data Port: Up to 10 Gbps (USB 3.2 Gen 2). For high-speed data drives and peripherals.
3. USB-A Data Port (1): Up to 10 Gbps (USB 3.2 Gen 2). High-speed data transfer for flash drives, external SSDs, or external input devices.
4. USB-A Data Port (2): Up to 10 Gbps (USB 3.2 Gen 2). Identical second 10 Gbps USB-A port.
5. HDMI Output: 4K @ 60Hz. HDMI 2.0 port supporting HDCP 2.2. Reaches 4K @ 60Hz on host laptops with DisplayPort 1.4 (e.g., MacBook M1/M2/M3, recent PC laptops).
6. Ethernet (RJ45): Gbps. Gigabit Ethernet interface for wired networking.
7. SD Card Reader Slot: UHS-I (Up to ~104 MB/s). Supports standard full-sized SD, SDHC, and SDXC cards.
8. microSD Reader Slot: UHS-I (Up to ~104 MB/s). Supports TF/microSD, microSDHC, and microSDXC cards. (Both slots can be used simultaneously).
System Requirements & Compatibility
Supported Operating Systems
-
macOS: macOS 12 (Monterey) or newer
-
Windows: Windows 10 and Windows 11
-
ChromeOS
-
iPadOS (On USB-C equipped iPads)
Host Hardware Requirements
Requires a host USB-C, USB4, or Thunderbolt 3/4 port that supports DisplayPort Alt Mode (for video) and Power Delivery (if using pass-through charging).
