Dell Performance Dock – WD19DC

The Dell Performance Dock WD19DC is a high-performance docking station designed primarily for power-hungry workstations. Its defining feature is the dual USB-C connection, which allows it to deliver significantly more power and bandwidth than standard single-cable docks.

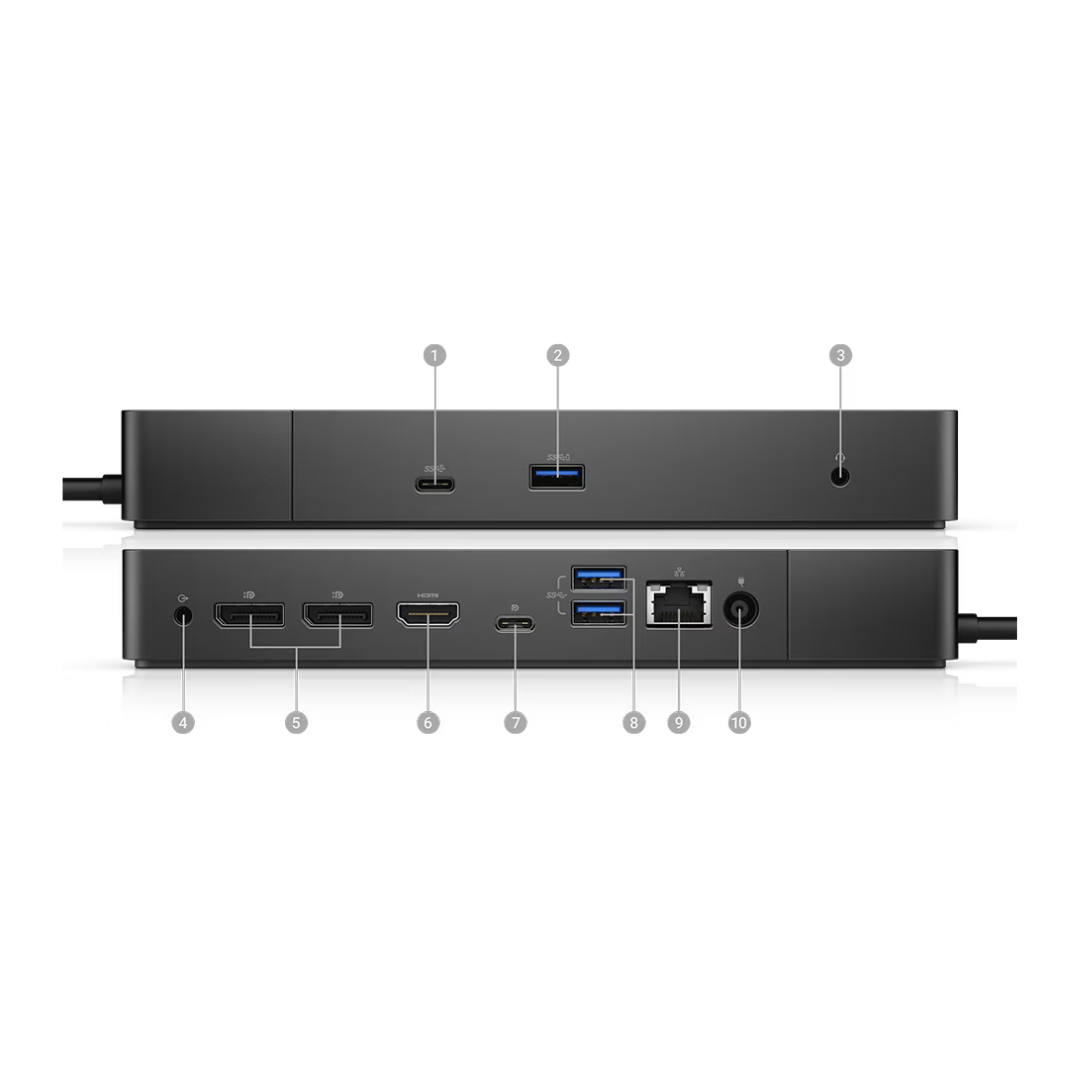

Connection Ports & Interface:

The dock features a wide array of ports to handle high-speed data and multiple displays.

Display & Resolution Support:

With Dual USB-C Connection (HBR3):

• Single Display: Up to 8K (7680 x 4320) @ 30Hz.

• Dual Displays: 2 x 4K (3840 x 2160) @ 60Hz.

• Triple Displays: 3 x QHD (2560 x 1440) @ 60Hz (or 3 x 4K with DSC support).

• Quad Displays: Up to 4 x FHD (1920 x 1080) @ 60Hz.

  Power Delivery:

  The dock is powered by a 240W AC Adapter, allowing it to pass through massive amounts of power to the host:

  • Up to 210W: To Dell Precision Mobile Workstations (via dual USB-C).

  • Up to 130W: To supported Dell laptops (via single USB-C).

  • Up to 90W: To non-Dell systems (standard USB-C Power Delivery).

    Primary Compatibility (Dual Cable Support – 210W Power)

    • Precision Series: 7530, 7540, 7550, 7560, 7730, 7740, 7750, 7760, 7670, 7680, 7770, 7780.

    Secondary Compatibility (Single Cable Support – 130W Power)

    • Latitude Series: 3390, 3400, 3490, 3500, 3590, 5280, 5289, 5290, 5300, 5400, 5420, 5480, 5490, 5500, 5580, 5590, 7200, 7280, 7300, 7380, 7390, 7400, 7480, 7490, 9410, 9420, 9510, 9520.

    • XPS Series: 9360, 9365, 9370, 9380, 9530, 9560, 9570, 9575, 9700, 9710.

    • Precision (Single Cable): 3520, 3530, 3540, 3550, 3560, 5520, 5530, 5540, 5550.

    Non-Dell Compatibility

    It will work with HP EliteBooks, Lenovo ThinkPads, and Apple MacBooks via a single USB-C cable.
