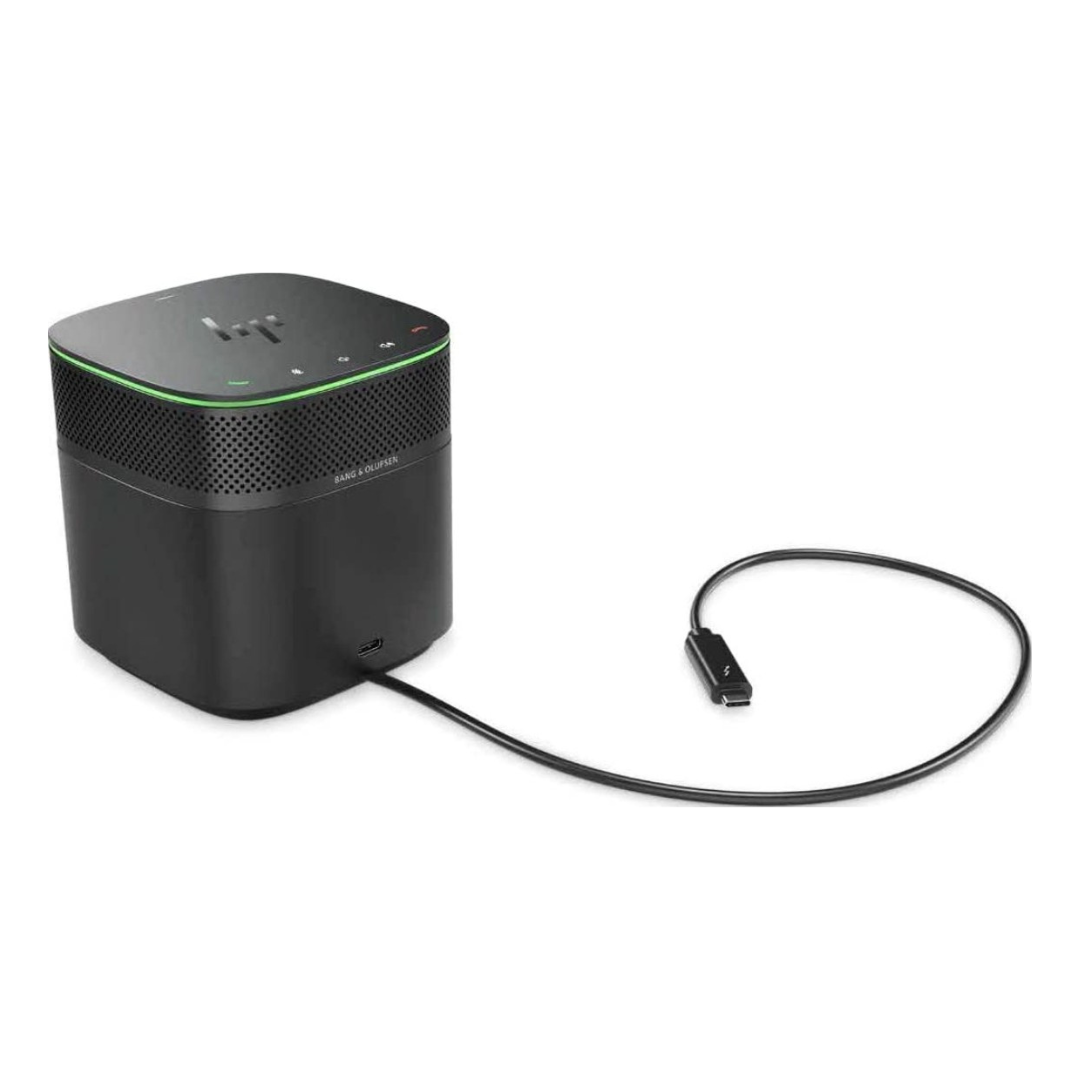

HP Thunderbolt Dock G2 Audio Module

Speakers:

• Type: Two side-firing stereo speakers

• Power: 2W rated power

  • Microphones:

    • Type: Two omni-directional microphones

    • Features: Includes built-in HP Noise Cancellation

  • Controls: The top panel features several touch-sensitive buttons for conference calls:

    • Pick up / Accept call

    • Hang up / Decline call

    • Microphone Mute

    • Volume Up

    • Volume Down

    • Power Button: A top-center power button can be used to power, wake, or sleep the connected host laptop.

  • Indicators:

    • LED Ring: A colored LED ring indicates call status:

      • Blinking Green: Incoming call

      • Solid Green: On an active call

      • Solid Red: Call is muted

      • Breathing Green: Call on hold

    • Haptic Feedback: The buttons provide a slight vibration to confirm successful interaction.

Front Ports:

1 USB-C™ port with data and power out (15W)
1 USB-C™ cable to connect to host system (0.7 meter cable length)

Side Ports:
1 powered USB 3.0 port
1 combo Audio Jack
1 Kensington lock slot

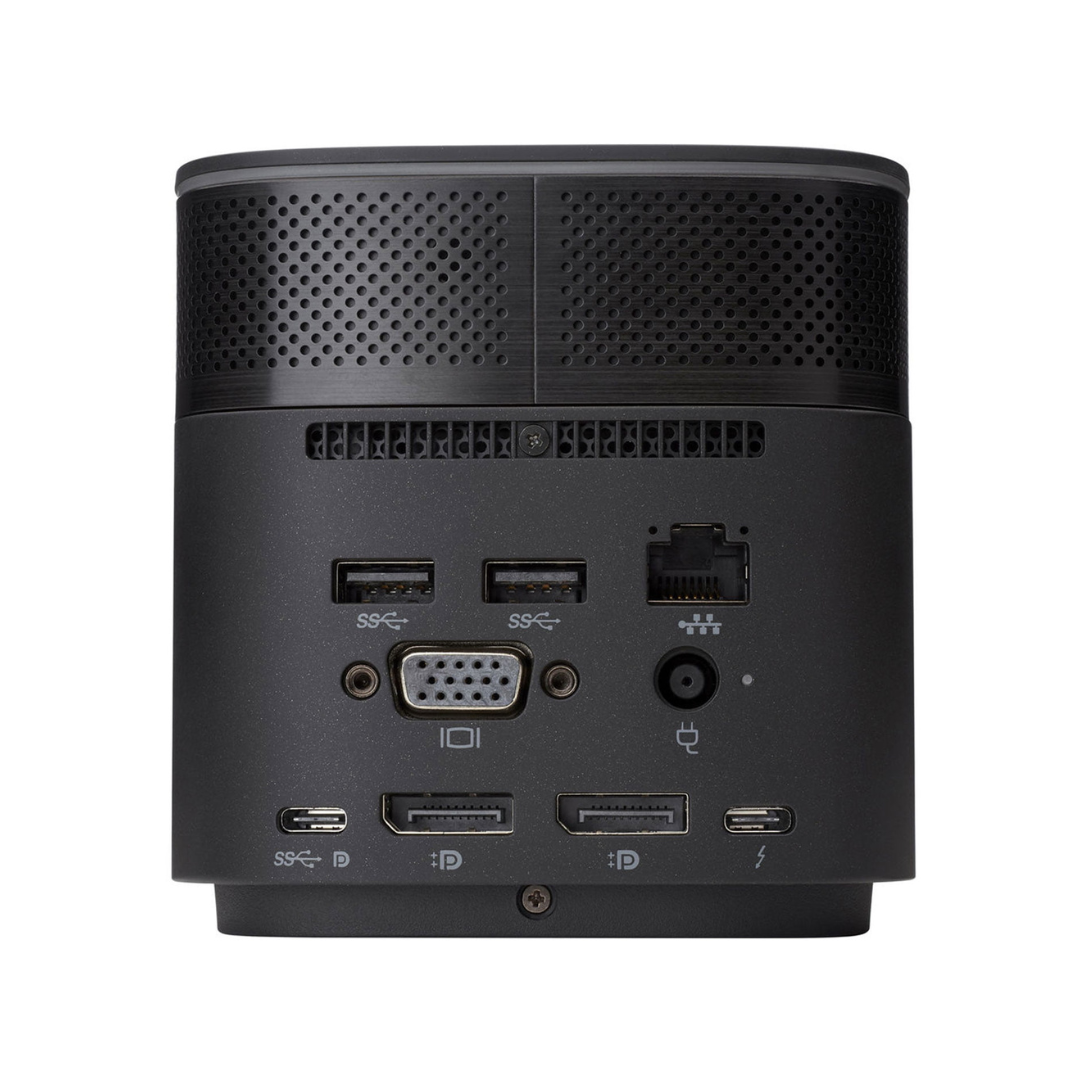

Back Ports:
1 Thunderbolt™ port
1 USB-C™ DisplayPort™ data and power out (15W) port
2 DisplayPort™ ports
1 VGA port
2 USB 3.0 ports
1 RJ45 port

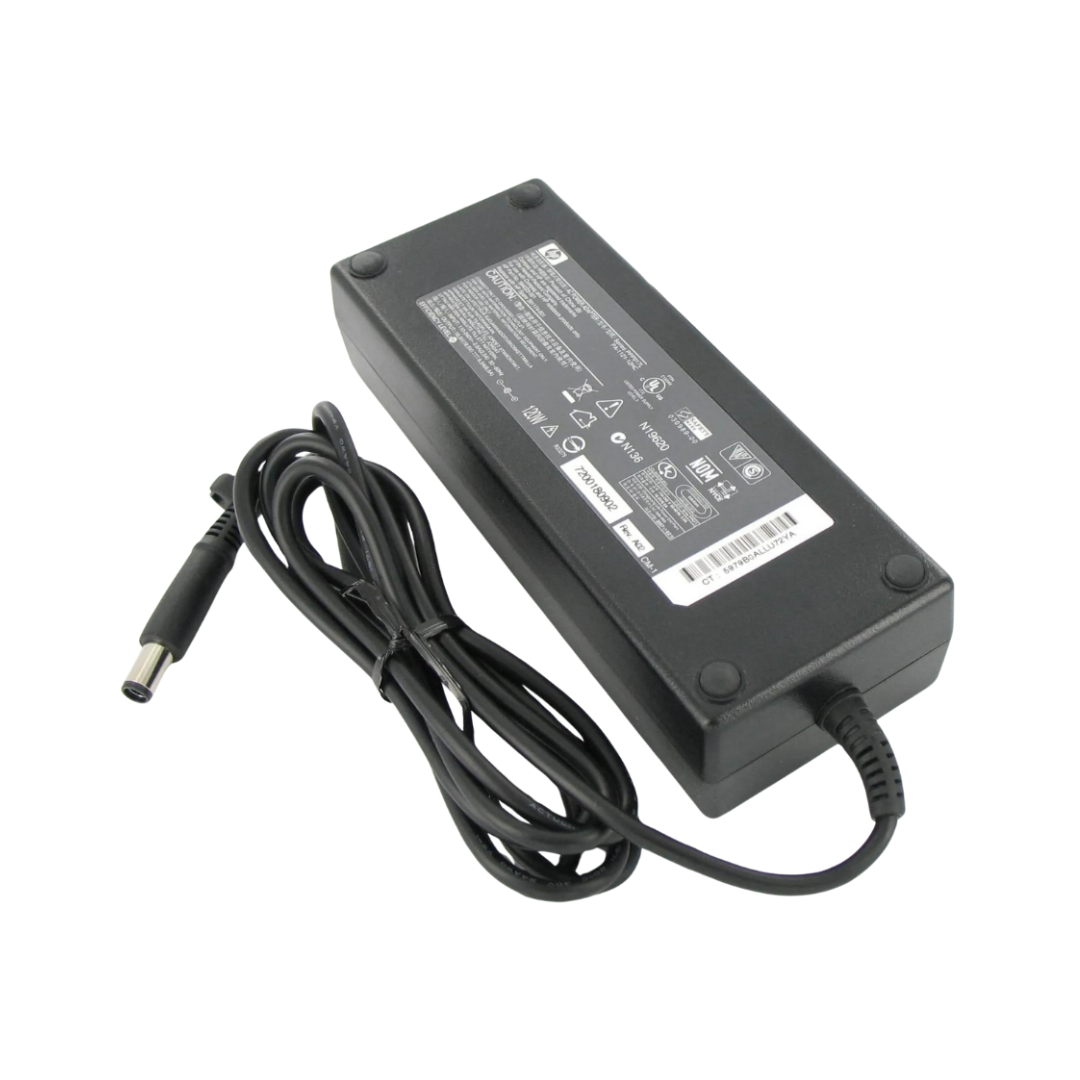

1 AC Adapter connector

Features:

Single-cable connection: Connect your notebook to the dock with a single Thunderbolt 3 (USB-C) cable for instant access to all your peripherals.

Dual 4K display support: Connect up to two 4K displays at 60Hz for a stunning visual experience.

Fast and powerful: Delivers up to 100W of power to your notebook and supports data transfer speeds of up to 40Gbps.

Versatile connectivity: Offers a wide range of ports for connecting all your essential devices, including external hard drives, printers, webcams, and more.
