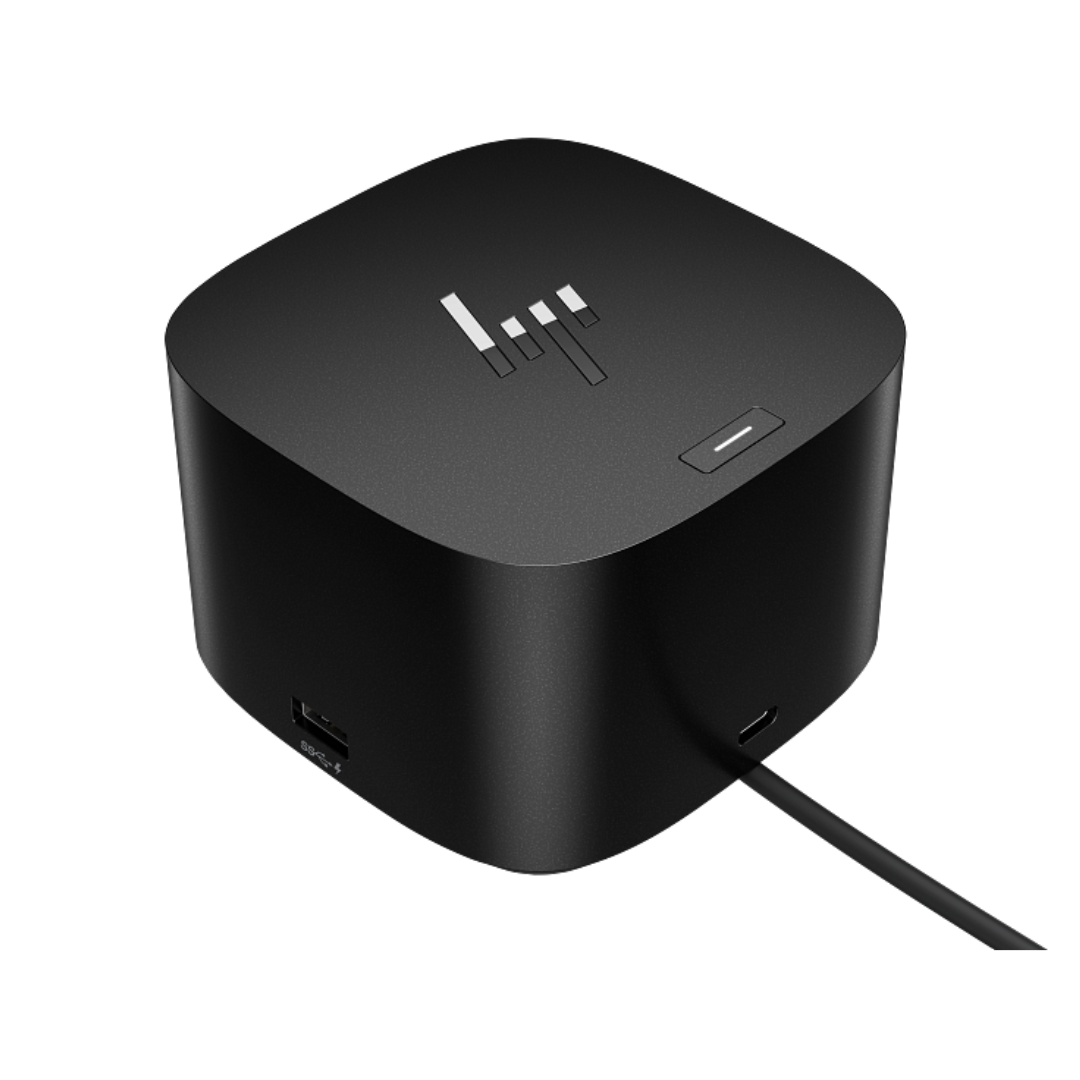

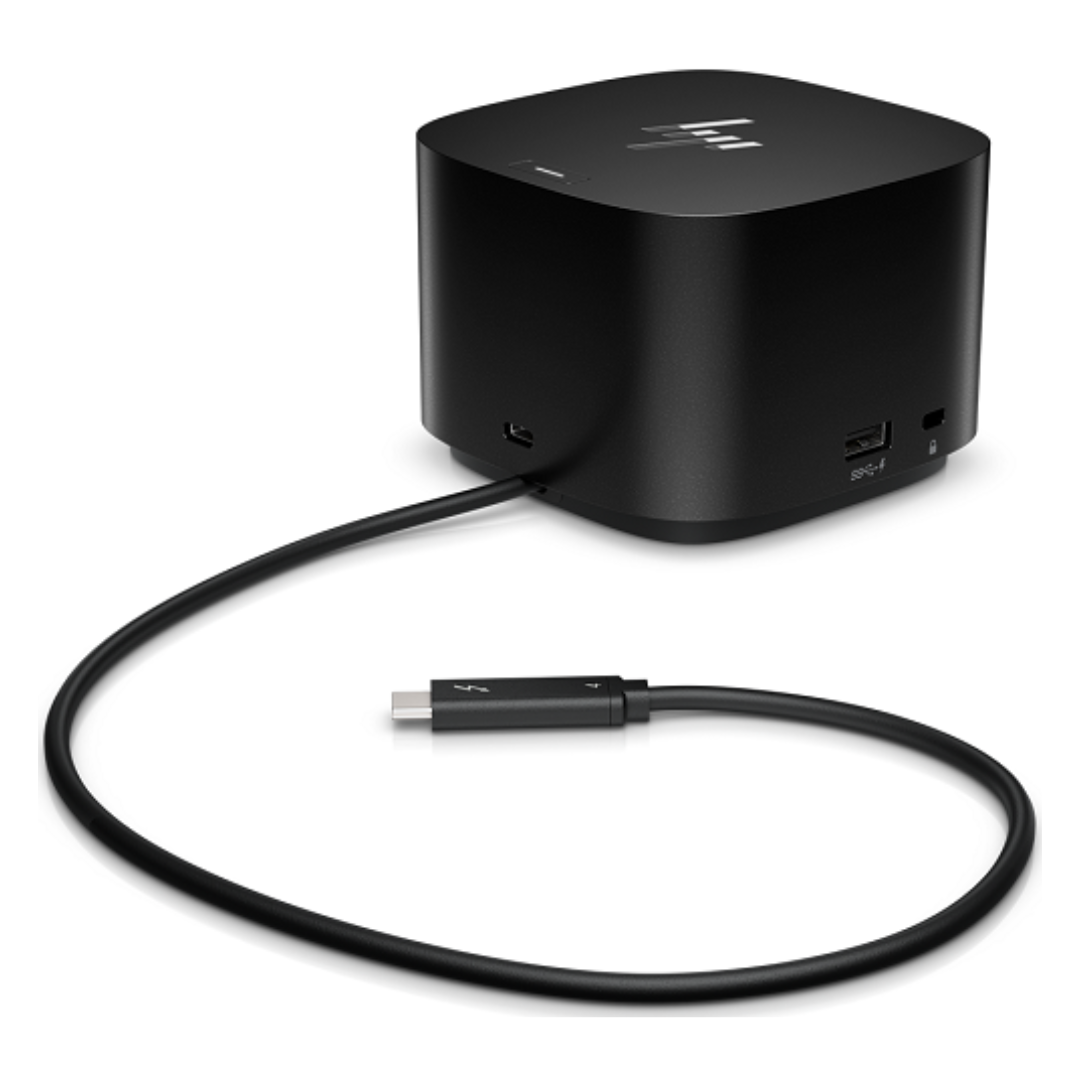

A high-performance professional docking station engineered to expand a laptop’s connectivity ports, support multi-display setups, supply power delivery, and provide enterprise-grade wired network management via a single Thunderbolt / USB-C connection.
Connectivity & Ports
The dock features a rich assortment of input/output interfaces distributed across its layout:
-
Front Components:
-
1 x USB Type-C 3.2 Gen 2 port
-
Attached host cable
-
-
Side Components (Right):
-
1 x Standard Kensington Lock Slot
-
2 x USB-A 3.2 Gen 1 ports
-
-

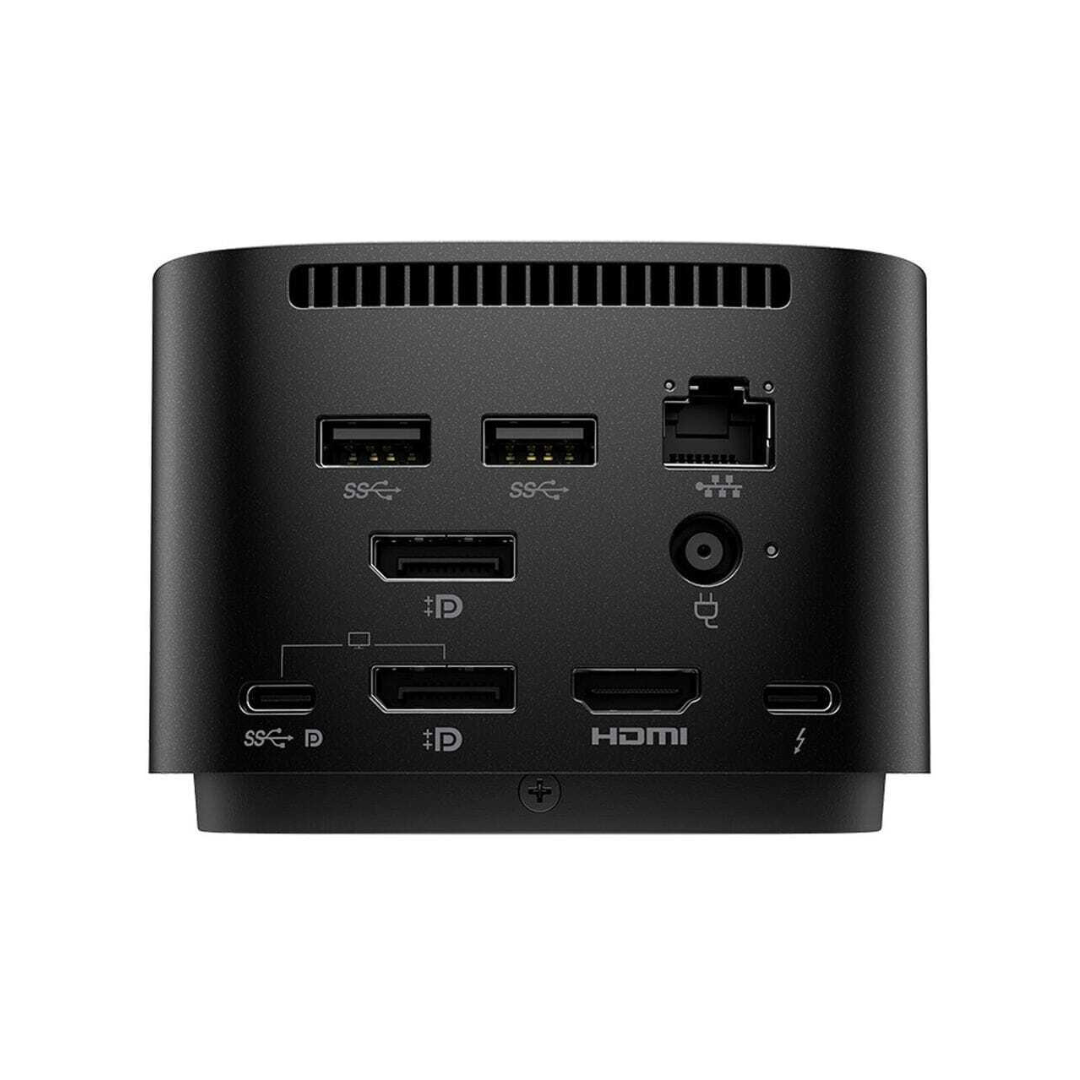

Back Components:
-
2 x USB-A 3.2 Gen 1 ports
-
1 x HDMI 2.0 port
-
2 x DisplayPort 1.4 ports
-
1 x Thunderbolt 4 port
-
1 x USB-C 3.2 Gen 2 DisplayPort alt-mode port
-
1 x RJ-45 Ethernet port
-
1 x Power barrel input port (120W AC adapter plug)
-
Power Specifications
-
Power Supply Unit:
-
Input: 100 to 240V AC, 1.7A, 50 to 60 Hz
-
Output: 19.5V at 6.15A (120W total system power)
-
-
Power Delivery (To Host):
-
Delivers up to 100W of power delivery via USB-C/Thunderbolt to supported host notebooks.
-
-
Power Delivery Profiles (PD 3.0):
-
5V/5A, 9V/5A, 12V/5A, 15V/5A, 20V/5A
-
Key Features & Capabilities
-
Display Support: Capable of driving multiple external high-resolution displays (up to quad 4K displays depending on host system capabilities and Display Stream Compression [DSC]).
-
HP Sure Start Security: Features built-in hardware-level security firmware protection that prevents malicious actors from leveraging the dock to compromise the host network or laptop (meets NIST 800-193 standards).
-
Enterprise Manageability: Supports advanced network manageability features including Wired vPRO management, PXE Boot, Wake-on-LAN (from Off, Sleep, or Hibernation), MAC Address Pass-Through, and Disconnected Firmware Updates.
-
Top Component: A mechanical power button equipped with an LED indicator to turn on or wake up the host system.
-
Cross-Platform Compatibility: Works natively across Windows (10/11), macOS, ChromeOS, and select Linux distributions (Ubuntu).
